A convenient complete set for percutaneous placement of drainage catheter. Soft polyurethane material provides superior biocompatibility and drainage. Highly radiopaque for precise placement. Laying time up to 30 days

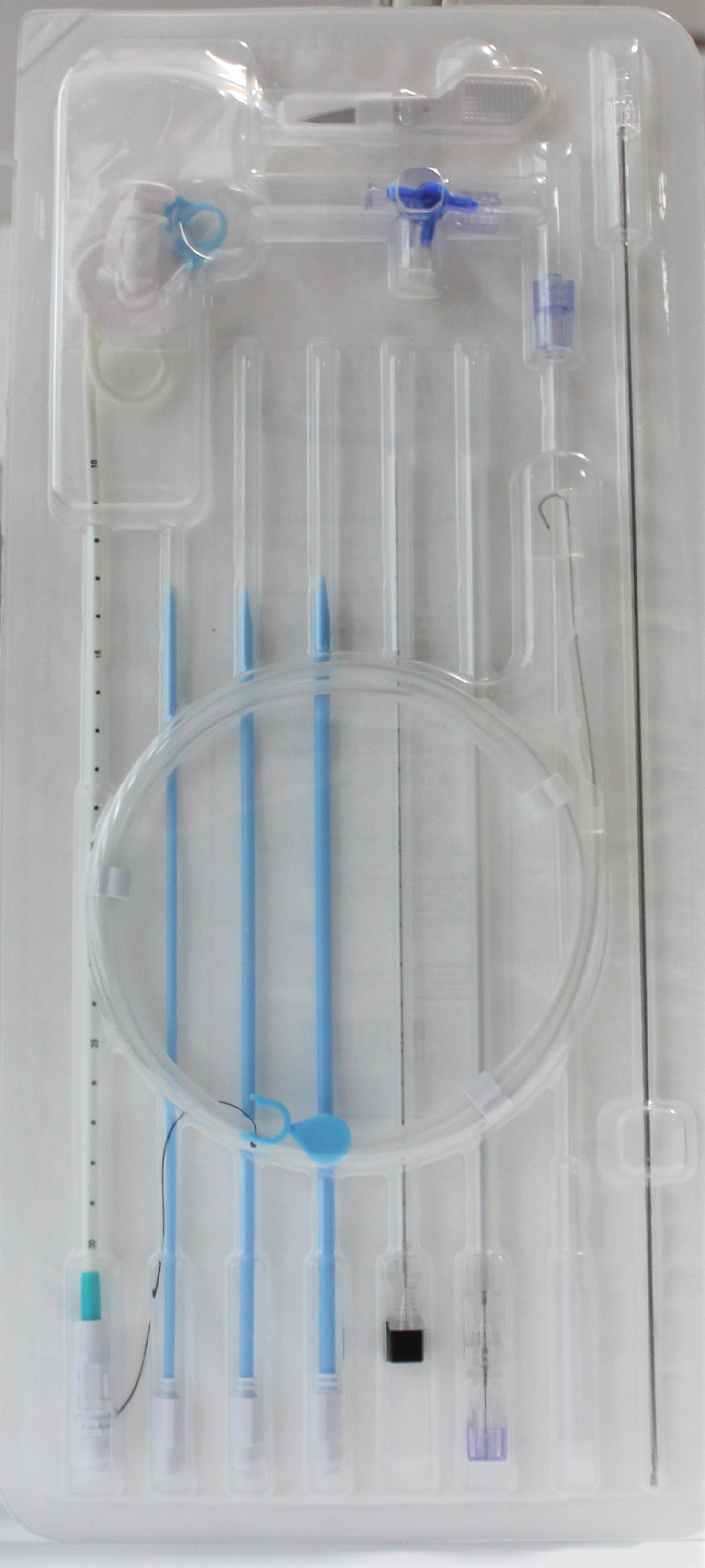

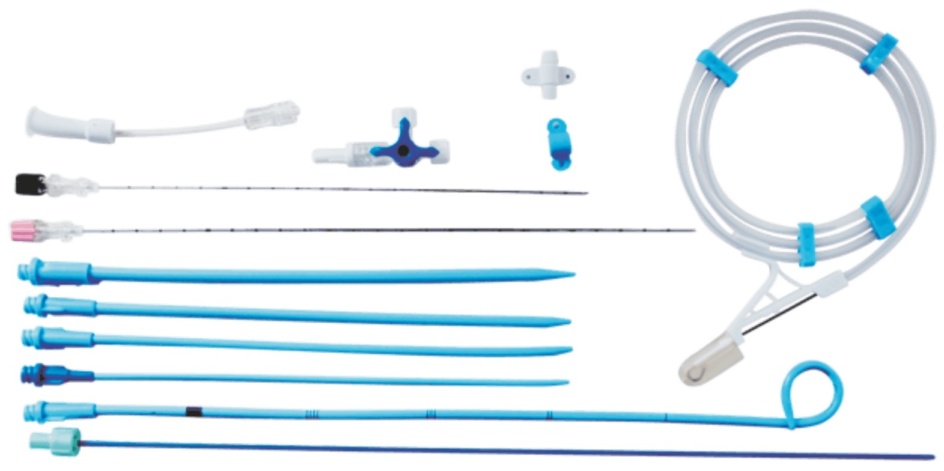

FEATURES: One Set consists of--

• PIGTAIL – Drainage Catheter 35 cm, usable length 30 cm, plus straightener

• Puncture needle 1,3 mm (18 GA)

• Lunderquist Guidewire 80 cm J-Tip, fixed core, stainless steel, 0.038”

• Fascial Dilators 20 cm, ABS

• Urine Bag connector

Set with PIGTAIL Catheter

Catheter hydrophilic coated

Art. No. ---------Catheter Ø (Fr/CH) -------Fascial Dilators Ø (Fr/CH)-------Length (CM)

PDS-P6                 6                                        5 – 6 – 7     25 cm

PDS-P7                 7                                        6 – 7 – 8     30 cm

PDS-P8                 8                                        7 – 8 – 9     30 cm

PDS-P9                 9                                        7 – 8 – 9 – 10     30 cm

PDS-P10              10                                       6 – 8 – 10 – 12     30 cm

PDS-P12              12                                       6 – 8 – 10 – 12     30 cm

PDS-P14              14                                       6 – 8 – 12 – 14    30 cm

PIGTAIL Catheter only

PCN-P6 ----------6 Fr 25 cm

PCN-P7 ----------7 Fr 25 cm

PCN-P8 ----------8 Fr 30 cm

PCN-P9 ----------9 Fr 30 cm

PCN-P10 --------10 Fr 30 cm

PCN-P12 --------12 Fr 30 cm

PCN-P14 --------14 Fr 30 cm

PCN-P16 --------16 Fr 30 cm

CAUTIONS:

1. FOR SINGLE PATIENT USE ONLY.

2. THIS SET IS INTENDED FOR ENTERAL FEEDING ONLY.

. DISCARD AFTER USE.

5. IT IS RECOMMENDED THAT THIS DEVICE BE REPLACED EVERY 24 HOURS.

COLOR: BLUE AND WHITE
